xDuinoRail-Decoder

The friendly decoder development plattform for model railroad tinkers.



Target plattforms

Arduino (UNO R3) formfactor

The primary tinker formfactor is the "Arduino UNO R3":





CPU

MCU

Vendor

Product Name & Page





? Atmega ?

Atmega328

Arduino & Clones





---

Atmega32u4

Arduino & Clones





---

AtmegaMEGA

Arduino & Clones





ARM M0+

SAMD21

Adafruit

<![CDATA[]]>Metro M0 Express<![CDATA[]]>



ARM M0+

SAMD21

SparkFun





ARM M4

SAMD51

Adafruit

<![CDATA[]]>Metro M4 Express<![CDATA[]]>



Dual ARM M0+

RP2040

Adafruit

<![CDATA[]]>Metro RP2040<![CDATA[]]>



ARM M4

nRF52840

Nordic

<![CDATA[]]>nRF52840 DK<![CDATA[]]>



ARM M4

nRF52840

Waveshare

<![CDATA[]]>nRF52840 Bluetooth 5.0 Evaluation Kit<![CDATA[]]>



RV32IMAC

SiFive RISC-V

SparkFun

<![CDATA[]]>SparkFun RED-V RedBoard<![CDATA[]]>



RV32IMAFC

WCH RISC-V

AliExpress

<![CDATA[]]>CH32V307V-EVT-R1 CH32V307 Evaluation Board RISC-V<![CDATA[]]>




Decoder development for XIAO formfactor

The <![CDATA[]]>XIAO<![CDATA[]]> formfactor may even fit some H0 locomotives, so COMING SOON:





CPU

MCU

Vendor

Product Name & Page





ARM M0+

SAMD21

SeeedStudio

<![CDATA[]]>XIAO SAMD21<![CDATA[]]>



Dual ARM M0+

RP2040

SeeedStudio

<![CDATA[]]>XIAO RP2040<![CDATA[]]>



ARM M4

nRF52840

SeeedStudio

<![CDATA[]]>XIAO BLE<![CDATA[]]>



Xtensa LX7

ESP32-S3

SeeedStudio

<![CDATA[]]>ESP32-S3<![CDATA[]]>



RV32IMC

ESP32-C3

SeeedStudio

<![CDATA[]]>ESP32-C3<![CDATA[]]>



ARM M0+

SAMD21

Adafruit

<![CDATA[]]>QT Py SAMD21<![CDATA[]]>



Dual ARM M0+

RP2040

Adafruit

<![CDATA[]]>QT Py RP2040<![CDATA[]]>



RV32IMC

ESP32-C3

Adafruit

<![CDATA[]]>QT Py ESP32-C3<![CDATA[]]>



Xtensa LX7

ESP32-S2

Adafruit

<![CDATA[]]>QT Py ESP32-S2<![CDATA[]]>



Xtensa LX7

ESP32-S3

Adafruit

<![CDATA[]]>QT Py ESP32-S3<![CDATA[]]>

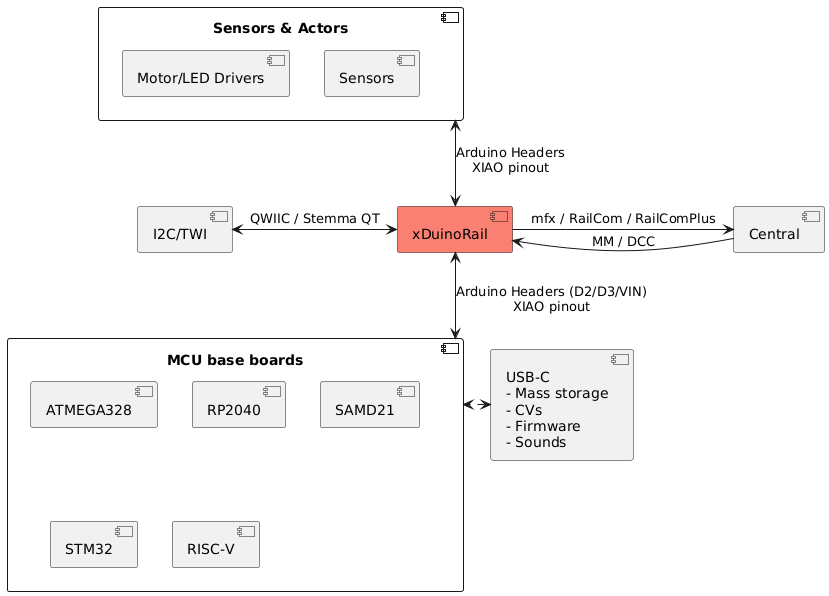

Features

Power:
- It extracts power from the rails.

Data
- It extracts DCC raw signals  from the rails.
- It provides raw (RailCom) feedback to the rails.

The data pins are X (input) and Y (output) per default (no soldering needed, but can be reassigned to any other GPIO-Pins.

Excluded by purpose


It doesn't include any power IO
It doesn't include any MCU
